S2C M HS
Underwater Acoustic Modem
The high-speed mini-modem offers incredible 62.5 kbps for short-range transmissions over 300 m range.
The omnidirectional beam pattern coupled with the compact and lightweight design makes it a great solution for integration with UUVs and diver tracking systems.
The S2C M series of "mini-modems", a product line designed for size- and weight-sensitive applications, is ideal for integration with modern UUVs.
Applications include:
Communication and positioning for AUVs and ROVs
Diver tracking systems
Size- and weight-sensitive applications

High-Speed
High frequency device for fast data transfers

Light and compact
Smaller and lighter build designed for size- and weight-sensitive applications

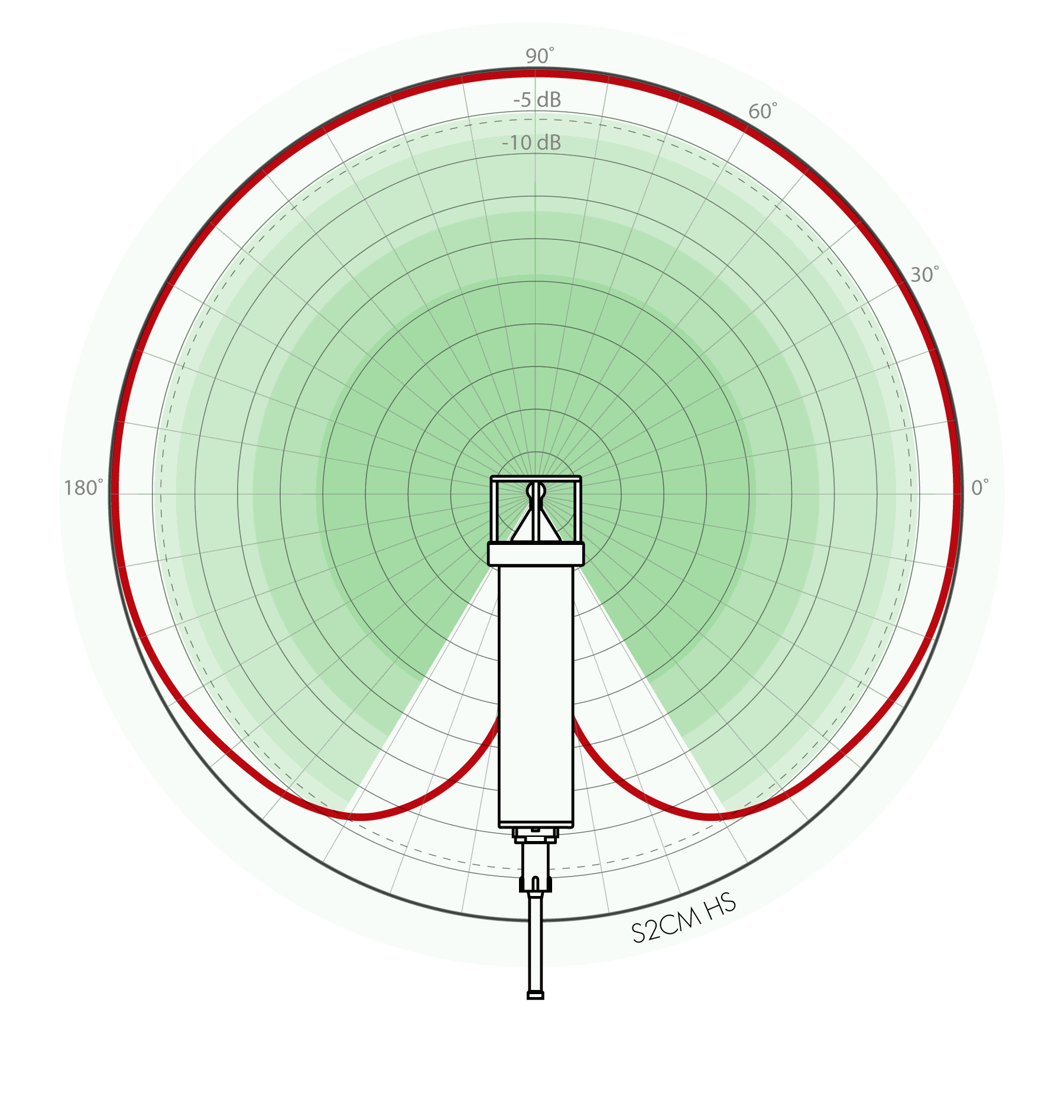

Directivity pattern
The beam pattern is optimal for transmissions in horizontal channels
S2C M HS
- TECHNICAL SPECIFICATIONS
Delrin | 200 m |
Stainless Steel | 2000 m |
Operating Range | 300 m |
Frequency Band | 120 - 180 kHz |
Transducer Beam Pattern | omnidirectional |
Acoustic Connection | up to 62.5 kbit/s |
Bit Error Rate | less than 10-¹⁰ |
Internal Data Buffer | 1 MB, configurable |
Host Interface [1] | Ethernet or RS-232 |
Interface Connector | 1 connector |
Stand-by Mode | 2.5 mW |
Listen Mode | 5 - 285 mW |
Receive Mode | 0.8 W |
Transmit Mode | 3.5 W, 200 m range |
Transmit Mode | 10 W, max. available |
External | 24 VDC (12 VDC) |
Internal | rechargeable battery |
Delrin | ✓ |
Stainless Steel | ✓ |
Housing | Ø 63x235 mm |
Total length | 310 mm |
Delrin | 1120/330 g |
1) One RS-232 Interface can be replaced with a RS-422 interface. Contact EvoLogics for more information!
2) Power consumption for RS-232 interface. Add 500 mW if an Ethernet interface is installed. Add 300 mW if the Wake-Up Module is installed. User-configurable Listen Mode is only available with a Wake-Up module installed. Power consumption in Listen Mode depends on Listen Mode settings.
3) Contact EvoLogics for more information on external and internal power supply options.
4) Dimensions of a Delrin housing, other builds are slightly larger.
5) The Wake Up Module is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422.
Specifications subject to change without notice. ©EvoLogics GmbH
Modules and Options
Wake-Up Module [5] | ✓ |
Power switch | |
Advanced Timekeeping Module | ✓ OEM-only |
SDM Version | ✓ |
Acoustic Release Device | |
Floatation Collar | |
Pressure Sensor | |
Cable-Mounted Transducer | ✓ |
OEM-Version | ✓ |
