S2C T 48/78

Underwater Acoustic Modem

The S2C T “tiny” modems are the new generation light and ultra-compact form factor that represents a size reduction of almost 20% compared to our M-series mini-modems.

The new model features a fully-fledged S2C engine and is compatible with R- and M-modems of the same type.

S2C T “tiny” modems deliver a great performance in most challenging conditions and offer several configuration options to meet the needs of a particular application. S2C T is a great fit for small AUVs and ROVs where seamless integration of hardware and software components is critical.

Applications include:

  • Fast short and medium range transmission in horizontal channels

  • Communication and positioning for AUVs and ROVs

  • Size- and weight-sensitive applications

  • Fast data transfers in adverse conditions

High-Speed

High frequency device for fast data transfers

Ultra-light and compact

Smaller and lighter build designed for size- and weight-sensitive applications

Directivity pattern

The beam pattern is optimal for transmissions in vertical and slant channels

S2C T 48/78 - TECHNICAL SPECIFICATIONS

Delrin 200 m
Stainless Steel 2000 m
Operating Range 1000 m
Frequency Band 48-78 kHz
Transducer Beam Pattern horizontally omnidirectional
Acoustic Connection up to 31.2 kbit/s
Bit Error Rate less than 10-¹⁰
Internal Data Buffer 1 MB, configurable
Host Interface [1] Ethern or RS-232
Interface Connector 1 connector - SubConn® Metal Shell Series
Stand-by Mode 2.5 mW
Listen Mode 5 - 285 mW
Receive Mode 0.8 W
Transmit Mode 25 W (adjustable)
External 24 VDC (12 VDC option)
Internal Rechargeable Li-Ion battery, 18 V 3.5 Ah 60.3 Wh, with integrated BMS and charger
Delrin ✓
Stainless Steel ✓
Housing Ø 63x170 mm
Total length 250 mm
Delrin 1050 / 300 g TBC

1) One RS-232 Interface can be replaced with a RS-422 interface. Contact EvoLogics for more information!
2) Power consumption for RS-232 interface. Add 500 mW if an Ethernet interface is installed. Add 300 mW if the Wake-Up Module is installed. User-configurable Listen Mode is only available with a Wake-Up module installed. Power consumption in Listen Mode depends on Listen Mode settings.
3) Contact EvoLogics for more information on external and internal power supply options.
4) Dimensions of a Delrin housing, other builds are slightly larger.
5) The Wake Up Module is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422. 2-interface Wake Up Module version reacts to incoming data on two serial interfaces.
6) The Power Switch is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422.



Specifications subject to change without notice. ©EvoLogics GmbH

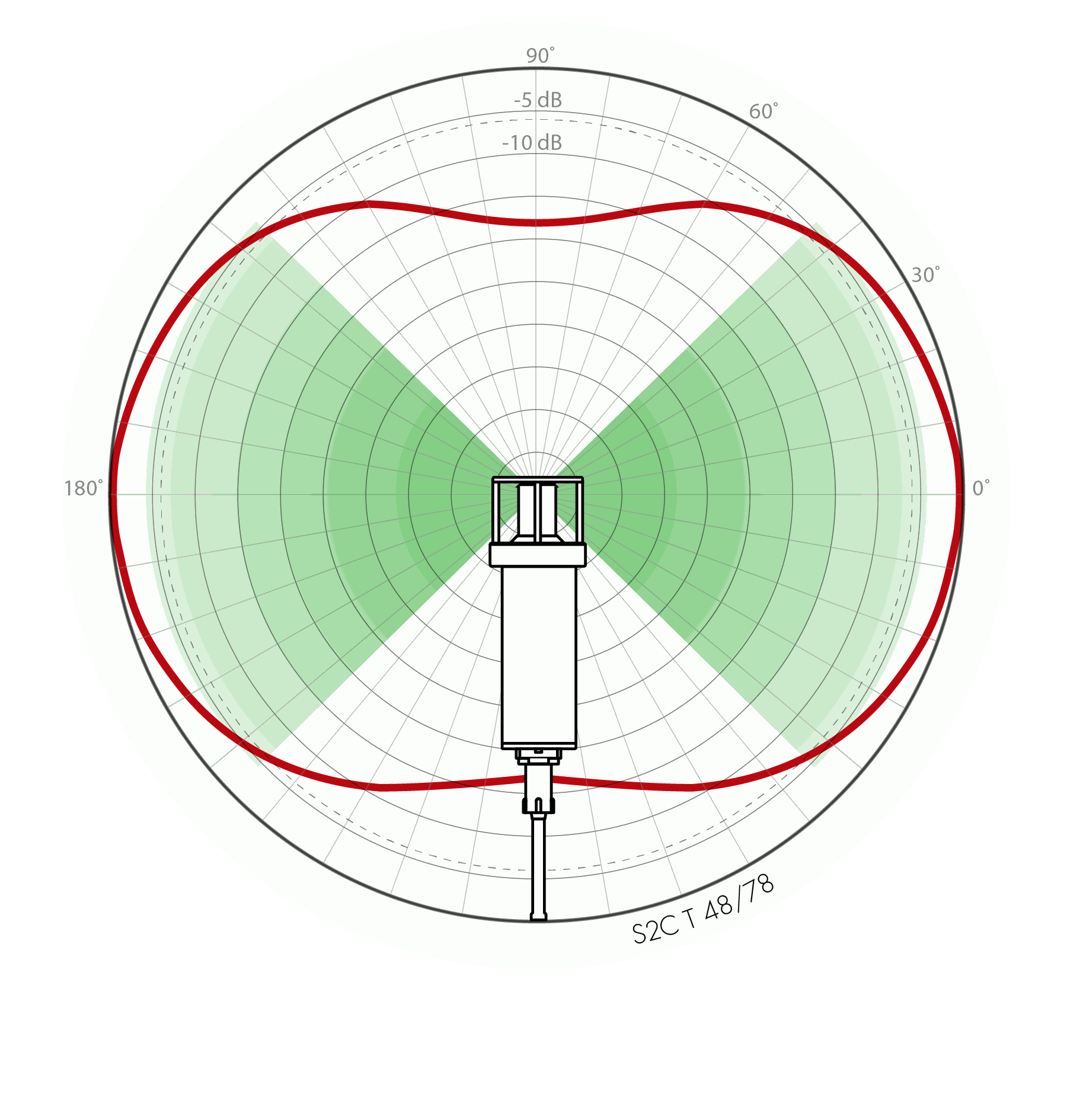

S2C T 48/78 Directivity Pattern

Modules and Options

Wake-Up Module [5]
✓
Power switch [6]

Advanced Timekeeping Module
SDM Version

Acoustic Release Device

Floatation Collar

Pressure Sensor

Cable-Mounted Transducer
✓
OEM-Version
✓
