Underwater Acoustic Modems
Series
15/27
Reliable communication and positioning for deep-water and long-distance operations
Underwater Acoustic Modems
Series
15/27
Reliable communication and positioning for deep-water and long-distance operations
15/27
The 15/27 series delivers full-duplex underwater communication and simultaneous positioning with our field-proven S2C acoustic technology. Designed for reliable, long-range data exchange and rated for deep waters, it achieves up to 9.2 kbit/s over 4000 m range.
[01]
Underwater acoustic sensor networks for environmental, structural, and infrastructure monitoring in deep waters
[02]
Reliable data retrieval and remote control for deep-water instruments and platforms
15/27
The 15/27 series combines long-range performance with configuration versatility - it is our only long-range model available in the compact MINI form factor along with PRO and PRO USBL. Optimized for slanted and vertical transmissions, these devices are well-suited for long-term seafloor deployments.
Form Factor(s)

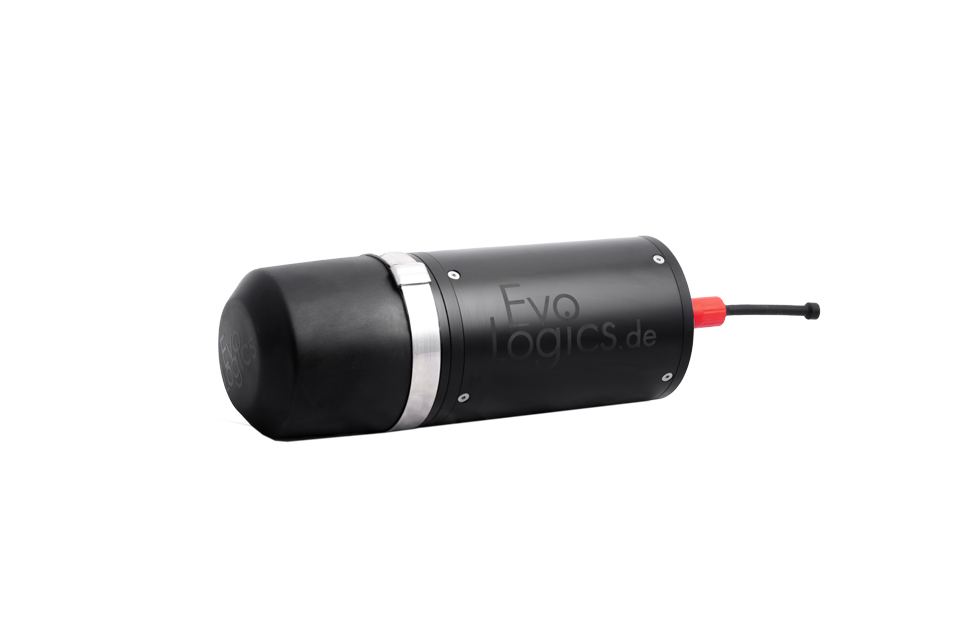

PRO
The largest and most powerful modems in the EvoLogics range. PRO models offer the highest transmission power and the widest selection of configuration options and add-ons. The series features our full range of models, including low-frequency, long-range, deep-rated devices for deep-sea deployments.

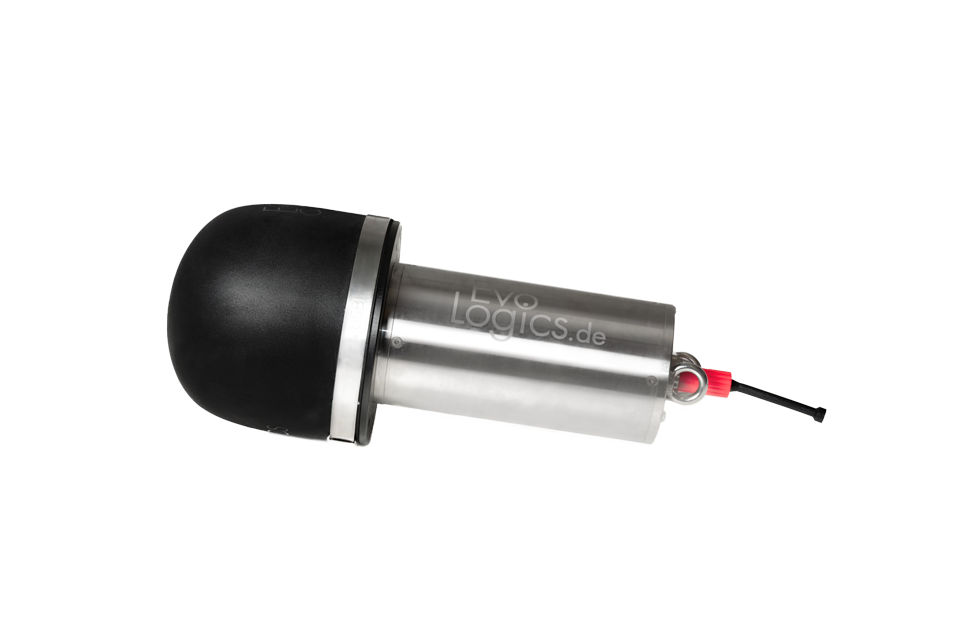

PRO USBL
PRO USBL transceivers are full-fledged PRO modems with a USBL antenna, enabling simultaneous positioning and advanced data delivery.
MINI
Compact and lightweight without compromising on performance. MINI modems match PRO-series transmission power in a smaller form factor. Ideal for space-constrained setups, TINY series features high- and mid-frequency models and offers key configuration and add-on options.
Speed Range
Long-range deep-water devices
Range
Long range
Frequency Band
15 - 27 kHz
Acoustic Connection
up to 9.2 kbit/s
Operating Range
4000 m
Depth Ratings
200 m, 2000 m, 6000 m, 10000+ m - optional
Transducer Beam Patterns
wide-angle (120 degrees)
Please note:
Specifications are subject to change without notice. Listed bitrate and operating range values refer to performance in good acoustic conditions and vary with the environment. Operating range and depth ratings depend on the selected product configuration.
Modems
The 15/27 family is available in PRO, MINI and PRO USBL configurations with all of our add-on options, including builds rated to full-ocean depth.
15/27 offers wide-angle coverage with its 120-degree beam pattern. It is optimal for long-range data transfers in slanted and vertical directions, such as from the seafloor to the surface.
